Accessories
Chrome Milano
draft tower
Draft Tower
Features Overview
Bring a little taste of Italian style to your bar space with this dispensing Milano draft tower.
Made of chrome-plated brass, this European draft tower includes up to four pre-assembled shanks and faucets so it’s easy to get it up and running.
This Milano tower dispenser is fully cold-blocked and ready to be attached to a premium glycol chiller system. It includes 3/8″ OD copper glycol lines.
For the majority of long draw or commercial draft systems, especially those running 6 or more lines or draft systems running over 15 feet, a glycol chiller is recommended. This system implements a separate chiller that uses the power of glycol to move beverages further distances, while keeping it cold from chiller to tap. Propylene glycol, a non-toxic, food-grade antifreeze, is the main component that’s been used for many years in food-processing systems.
Please note: Tap handles are not included.
Overall tower height
3″ Diameter
Height from bar top to faucet
4 1/2″ Diameter (base flange)
Product lines
3/16” inside diameter stainless steel
Glycol lines
3/8” outside diameter copper
JULI 9100
Remote chiller
Features Overview
JULI 9100 High Performance Remote Recirculation System, utilizing cold carbonated and stainless steel recirculating pump to chill BOTH the water and syrups, and to provide optimal temperature products. The JULI 9100 is an ideal solution for a bar guns and towers.
The system includes Stainless steel cabinet, tank and product lines, CFC free refrigerant, Zero GWP structural insulation, Electronic Ice Bank Control (EIBC) and Electronic Liquid Level Control (LLC).
Dimensions
Height: (without legs) 25.875” (657 mm).
Width: 16.563” (421 mm).
Depth: 25.531” (674 mm)
Weight
Empty: 156 lbs (70.8kg).
Operating: 220 lbs (98.8 kg).
Shipping: 170 lbs (77.1 kg)
Water Requirements
Minimum flowing pressure of 25 PSIG (1.76 kg/cm2, 1.72 BAR).
Maximum static pressure of 50 PSIG (3.52 kg/cm2, 3.45 BAR)
Electrical
115V/60hz or 230V/50hz
Ice
Bank Weight 25-28 lbs (11.3kg – 12.7kg
CARBON DIOXIDE (CO2) REQUIREMENTS
Minimum pressure of 70 PSIG (4.92 kg/cm2, 4.83 BAR.
Maximum pressure of 80 PSIG (5.62 kg/cm2, 5.52 BAR)

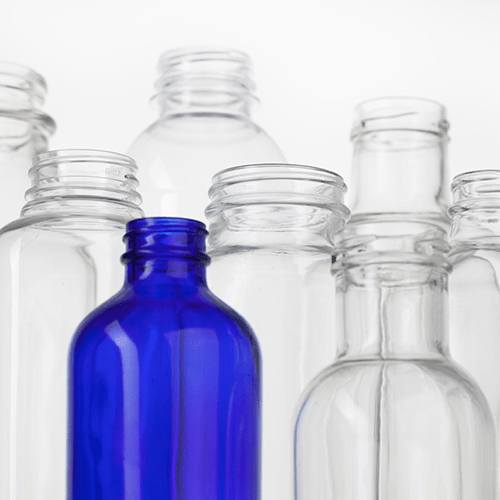

Customized Plastic Bottles
(with your logo)
Features Overview
Smart Soda offers selection plastic bottles & tamper-evident sealable caps, customized with your company logo.
Eco friendly PLA PBAT Biodegradable compostable plastic bottles are available.

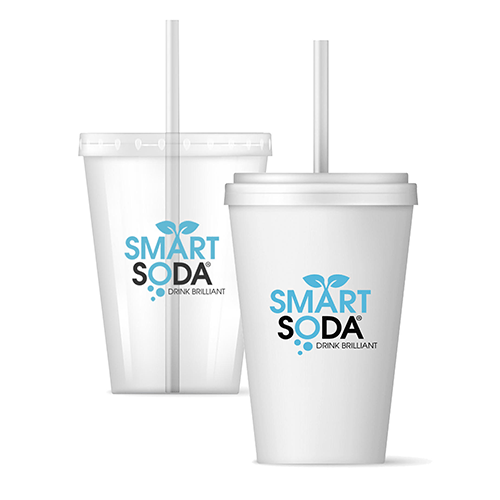

Customized Plastic Cups
(with your logo)
Features Overview
Eco friendly PLA PBAT Biodegradable compostable plastic cups are available.

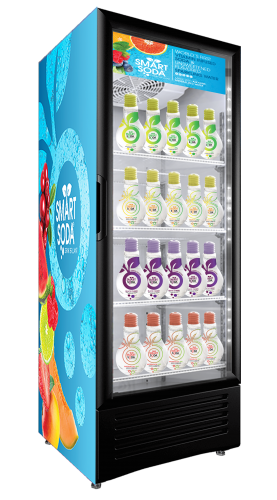

JULI VR-12
Glass Door Customized Refrigerator
Features Overview
Energy efficient, environmentally friendly, featuring spark-free components, low refrigerant charge and the most attractive product display.
ECO-FRIENDLY HC NATURAL REFRIGERANT
New R290 HFC-free refrigerant gas that reduces environmental impact and increases efficiency.
ELECTRONIC TEMPERATURE CONTROLLER
Patented ETC1H electronic controller assures optimal refrigeration performance through precision temperature control, and intelligent control for defrost cycle, compressor & other component functions.
ELECTRONIC FAN MOTORS
Enhances performance and efficiency. Uses only a fraction of the energy and offers longer life expectancy than industry standard shaded-pole motors.
NEWLY DESIGNED CONDENSER
New condenser featuring a joints reduction down to zero increasing long term refrigeration reliability and safeguarding against any system leaks.
LED EFFICIENCY +220 LUX MINIMUM OUTPUT
New 5th generation constant power efficiency LED uses lowest energy possible, with highest light output.
SPARK FREE REFRIGERATION COMPONENTS All HC
models will have spark free refrigeration components for optimal safety, per UL requirements
Doors
1 Glass Door
Shelves
4 Shelves
Filtered Water 50 PSI min.
Refrigeration Type
R290 / 1.94 Oz
Temperature Range
Cut-Out: 32°F
Cut-In: 44.6°F
Exterior Dimensions
60 7/8″ H x 24 7/8″ W x 23 1/4″ D
Capacity: 7.87 ft³
Interior Dimensions
49 7/8″ H x 21 7/8″ W x 18 5/8″ D
Bottle Capacity: 168 (20 Oz)
Electrical
115V/60Hz
Power
1/5 hp
